Port Fendes Durable Shock Absorption UV Resistant Weatherproof
Description

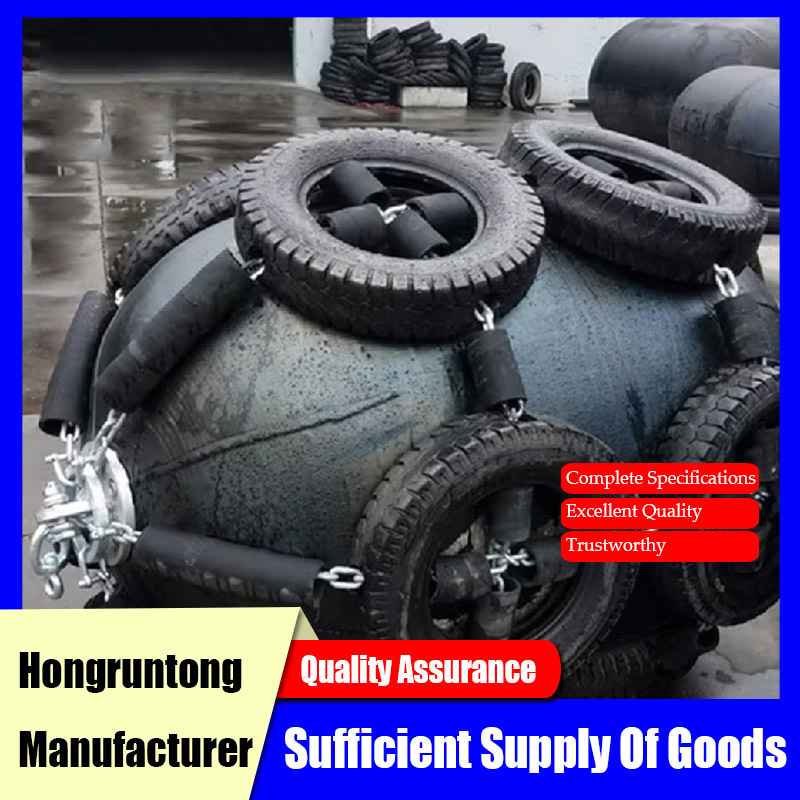

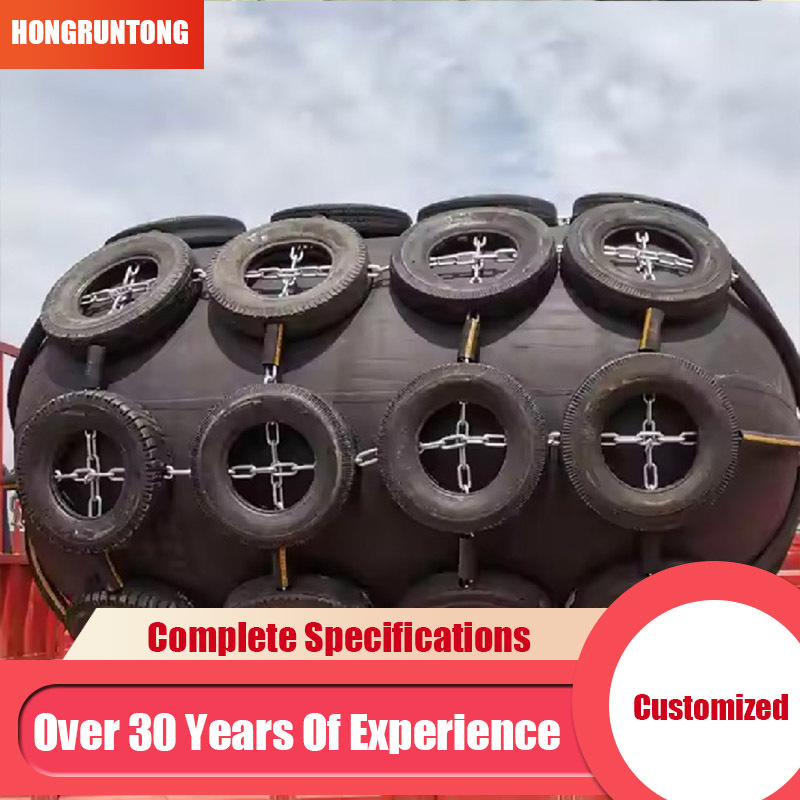

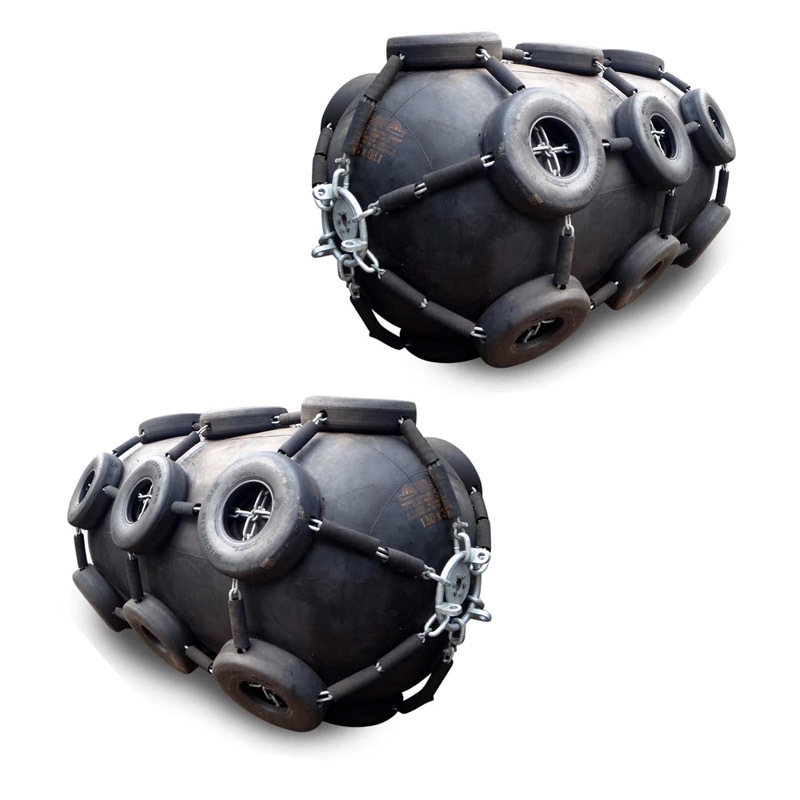

The Yokohama Rubber Fender is a high-capacity pneumatic fender designed for high-frequency berthing and extreme impact conditions. Its floating design and compressed air chamber provide excellent energy absorption while maintaining a low reaction force to protect both vessel hulls and quay structures. The fender’s multi-layer cord reinforcement ensures durability and prevents deformation under repeated loading, making it ideal for busy commercial ports, container terminals, and ship-to-ship operations where continuous docking cycles occur.
( Case Study: A major East Asian container terminal handling hundreds of large container ships monthly faced rapid wear and tear on conventional fenders, causing frequent maintenance downtime and operational delays. Hongruntong Marine supplied heavy-duty Yokohama pneumatic fenders measuring 3.5 meters in diameter and 6.0 meters in length, with 80 kPa working pressure and reinforced chain-tire nets. Over a 24-month period, the fenders absorbed thousands of berthing events with minimal deformation. Terminal operators reported a 50 percent reduction in fender replacement frequency, smoother docking operations, and significant operational cost savings. The robust performance under high-frequency, high-energy conditions confirmed the suitability of Hongruntong Yokohama fenders for ultra-busy ports. )
Specifications
| Place of Origin | China |
| Brand Name | Yokohama Rubber Fender |
| Material | Natural Rubber |
| Color | Black |
| Application |
In ports with extreme tidal variations Ship-to-ship lightering operations Oil Gas (typically FSRU) Temporary berthing |
| Feature | Heat Resistance |
| Sample | Usually free |
| Production Method | Moulding |
| Temperature | -40℃~300℃ |
| Packing | Pallets |
| Lead time | 7-14 days |
| Diameter x Length [mm] |
50kPa Performance Data |
80kPa Performance Data |
||||
| Hull Pressure at GEA / kN / m2 |
Reaction Force / kN |
Energy Absorption / kNm |
Hull Pressure at GEA / kN / m2 |
Reaction Force / kN |
Energy Absorption / kNm |
|
| 1000 x 1500 | 122 | 182 | 32 | 160 | 239 | 45 |
| 1000 x 2000 | 132 | 257 | 45 | 174 | 338 | 63 |
| 1200 x 2000 | 126 | 297 | 63 | 166 | 390 | 88 |
| 1350 x 2500 | 130 | 427 | 102 | 170 | 561 | 142 |
| 1500 x 3000 | 153 | 579 | 153 | 174 | 761 | 214 |
| 1700 x 3000 | 128 | 639 | 191 | 168 | 840 | 267 |
| 2000 x 3500 | 128 | 875 | 308 | 168 | 1150 | 430 |
| 2500 x 4000 | 137 | 1381 | 663 | 180 | 1815 | 925 |
| 2500 x 5500 | 148 | 2019 | 943 | 195 | 2653 | 1317 |
| 3300 x 4500 | 130 | 1884 | 1175 | 171 | 2476 | 1640 |
| 3300 x 6500 | 146 | 3015 | 1814 | 191 | 3961 | 2532 |
| 3300 x 10600 | 158 | 5257 | 3067 | 208 | 6907 | 4281 |
| 4500 x 9000 | 146 | 5747 | 4752 | 192 | 7551 | 6633 |
| * Other size can be produced follow client's requirements. | ||||||
Features
Exceptional Energy Dissipation for High Frequency Docking
The fender’s internal air chamber allows progressive compression, effectively absorbing impact energy during frequent berthing events. This prevents stress spikes on vessel hulls and dock structures, maintaining operational continuity in high-traffic ports.
Ultra Resilient Reinforced Cord Layers
Multiple layers of synthetic tire-cord fabric embedded in high-quality rubber provide superior tensile strength and fatigue resistance. This reinforcement maintains the fender’s cylindrical shape and prevents delamination under repeated compression cycles, ensuring long-term stability in high-load environments.
Durable and Weather Resistant Rubber Shell
The external rubber layer is formulated for maximum resistance against ozone, UV radiation, saltwater, and abrasion. The seamless design minimizes wear and tear during repeated docking of large vessels, while optional chain-tire nets provide additional mechanical protection for extreme impact scenarios.
Flexible Deployment and Pressure Adjustment
Hongruntong pneumatic fenders are lightweight and easily installed or repositioned. Air pressure can be adjusted to optimize stiffness for varying vessel sizes and berthing conditions, ensuring consistent energy absorption across multiple operational scenarios.
Applications
High Traffic Container Terminals
Provides critical energy absorption for repeated docking of large container ships and feeder vessels, protecting quay structures and hulls.
Ship to Ship Transfer Operations
Ideal for oil, LNG, and bulk cargo transfers where vessels are in close proximity and require precise impact cushioning.
Floating or Temporary Berths in High-Use Ports
Supports modular berthing solutions that require rapid deployment and high durability under continuous loading cycles.
Why Choose Hongruntong Marine
Expertise in Heavy-Duty Marine Solutions
Hongruntong Marine has decades of experience supplying high-capacity Yokohama pneumatic fenders to the busiest ports worldwide. Our products are engineered to sustain frequent, high-energy berthing without compromising safety or structural integrity.
Advanced Material Formulation and Manufacturing
We utilize specialized rubber compounds and high-tensile cord fabrics with advanced vulcanization techniques. This ensures optimal elasticity, fatigue resistance, and long-term stability under extreme usage conditions.
Tailored Engineering and Simulation-Based Design
Fenders are custom-designed for vessel size, berthing energy, and docking frequency. Hongruntong employs finite element analysis to simulate multiple impact scenarios, optimizing fender dimensions, inflation pressure, and reinforcement layers for each project.
Comprehensive Support and Global Service Network
From delivery to installation, inspection, and lifecycle maintenance, Hongruntong Marine provides complete support. Our global logistics network ensures rapid spare parts supply and technical assistance, minimizing downtime and maximizing operational efficiency.
FAQ
1. How durable are Yokohama fenders in high-frequency docking?
They are designed to withstand thousands of berthing cycles without structural failure, maintaining consistent energy absorption and low reaction force.
2. Can these fenders handle ultra-large container ships?
Yes, the reinforced cord layers and adjustable internal air pressure allow fenders to absorb energy from vessels exceeding 200,000 DWT.
3. Are protective nets mandatory for all installations?
Optional chain-tire nets are recommended for high-energy or high-frequency berthing to prolong lifespan and protect the outer shell.
4. How frequently should maintenance inspections occur?
Visual inspections and pressure checks are recommended monthly in high-use environments, with additional checks after extreme impact events.
5. Are these fenders suitable for floating offshore berths?
Yes, the floating design, flexible deployment, and customizable pressure settings make them ideal for temporary or floating offshore docking solutions.
